Robotics Sample Applications

The Qualcomm® Intelligent Robotics (QIR) SDK for Ubuntu provides essential components for developing robotic features on Qualcomm platforms using the Ubuntu operating system.

Key Features of the QIR SDK:​

• Reference ROS Packages: Includes Robot Operating System (ROS) packages to support robotic application development.
• End-to-End Scenario Samples: Offers sample scenarios to help evaluate robotic platforms.
• QRB ROS Transport: Enables zero-copy transport of ROS messages on Qualcomm robotics platforms.

note

QRB ROS Transport is implemented based on REP 2007, which defines interfaces for serializing custom types and supports intra-process communication without conversion.

Prerequisites

  • Ubuntu OS should be flashed
  • Terminal access with appropriate permissions
  • If you haven’t previously installed the PPA packages, please run the following steps to install them.
    git clone -b ubuntu_setup --single-branch https://github.com/rubikpi-ai/rubikpi-script.git
    cd rubikpi-script
    ./install_ppa_pkgs.sh

Getting Started with QIR SDK on Ubuntu​

This guide walks you through using QIR sample applications on development kits running Ubuntu.

Setup Instructions:​

  1. Fetch ROS2 and QIR SDK using scripts.
  2. Install the QIR SDK.
  3. Add ROS source to your device following the ROS2 documentation.
  4. Add Qualcomm public PPA archives to your Ubuntu software sources:
sudo add-apt-repository ppa:ubuntu-qcom-iot/qcom-ppa
sudo add-apt-repository ppa:ubuntu-qcom-iot/qirp
  1. Install and configure the QIR SDK:
sudo apt install qirp-sdk
source /usr/share/qirp-setup.sh

Sample Applications​

The QIR SDK includes a variety of sample applications categorized as follows:
• Platform Sample Applications: Demonstrate platform-level capabilities.
• Robotics Sample Applications: Enable robotic functionalities such as CPU load monitoring and robot simulation using ROS2.

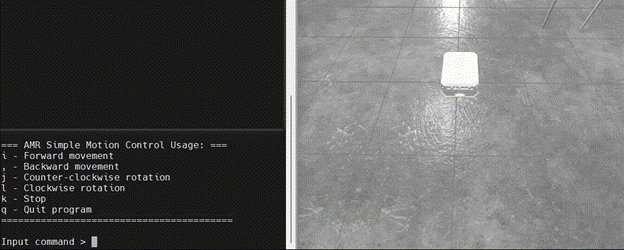

Simulation Sample – AMR Simple Motion​

The AMR simple motion is a simulated sample application that uses a Python-based ROS node to control the movements of QRB autonomous moving robots (AMRs) within the simulator.

The qrb-ros-simulation package provides a simulation environment. It allows you to control the movement of QRB AMRs through publishing the ROS messages to the /qrb_robot_base/cmd_vel topic.

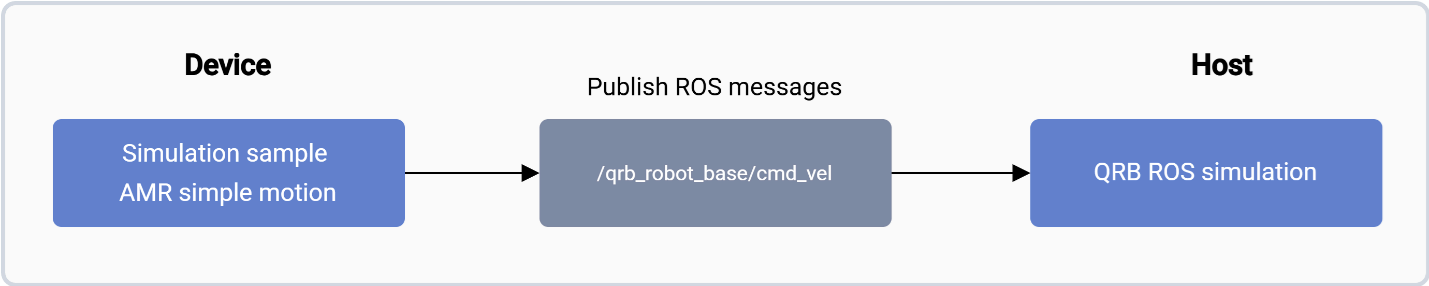

Pipeline flow for QRB AMR simple motion​

The figure shows the pipeline of QRB AMR Simple Motion

ROS node used in the AMR simple motion pipeline​

ROS node used in the AMR simple motion pipeline

ROS nodeDescription
Qrb_ros-simulationqrb_ros_simulation is a ROS package designed to set up the Qualcomm robotic

Reference Documentation​

For details instructions to run the sample applications, please refer for Qualcomm Intelligent Robotics SDK for Ubuntu.
